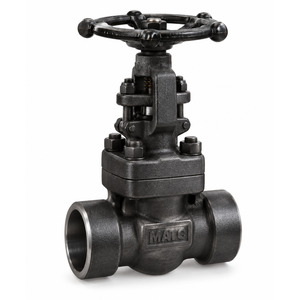

FORGED CARBON STEEL GATE VALVE SCREWED NPT/ BSPT
MATC Forged Carbon Steel Gate Valves with screwed NPT / BSPT ends are compact, heavy-duty isolation valves designed for demanding oil & gas, petrochemical, steam, power generation and industrial piping systems. Manufactured from forged carbon steel, these valves provide high mechanical strength, dependable shut-off and excellent performance in high-pressure service. ⚙️🔥
📏 Available Sizes
Common size range:
- ✔️ 1/2″ – DN15
- ✔️ 3/4″ – DN20
- ✔️ 1″ – DN25
- ✔️ 1-1/4″ – DN32
- ✔️ 1-1/2″ – DN40
- ✔️ 2″ – DN50
Special sizes and configurations may be available depending on pressure class and manufacturer.
💥 Available Pressure Classes
- 🔹 Class 800
- 🔹 Class 1500
- 🔹 Other pressure classes subject to project requirements
⚙️ Key Characteristics
- 🦾 Forged carbon steel body provides excellent strength and pressure integrity.
- 🔩 Available with NPT or BSPT screwed/threaded ends for compact pipeline installation.
- 🔒 Designed primarily for ON/OFF isolation service.
- ⬆️ Gate movement provides a relatively unobstructed flow path when fully open.
- 📉 Low pressure drop in the fully open position.
- 🔄 Handwheel operation provides controlled opening and closing.
- 🔥 Suitable for demanding high-pressure and elevated-temperature services, subject to trim, packing and pressure-temperature rating.
- 🧱 Compact forged construction is particularly useful where installation space is limited.
- 🛡️ Bonnet and stem arrangements can be selected according to pressure class and service requirements.
📋 Typical Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Forged Carbon Steel Gate Valve |
| Supplier | MATC |
| Valve Type | Gate Valve |
| Body Material | Forged Carbon Steel |
| Typical Material Grade | ASTM A105 / equivalent |
| Size Range | 1/2″ – 2″ |
| Pressure Class | Class 800 / Class 1500 |
| Connection | Screwed / Threaded |
| Thread Options | NPT / BSPT |
| NPT Standard | ASME B1.20.1 |
| Operation | Manual Handwheel |
| Bonnet | Bolted / Welded, depending on design |
| Trim | Stainless Steel / specified trim |
| Flow Function | Isolation / Shut-Off |
| Service | Oil, Gas, Steam, Water & compatible process fluids |
📌 Note: Exact pressure-temperature ratings, trim materials, valve standards and suitability for a particular medium should be confirmed against the specific manufacturer’s datasheet.
💪 Advantages
- 💥 Excellent high-pressure capability
- 🦾 Forged construction provides greater mechanical integrity for demanding service.
- 📉 Low flow resistance when fully open
- 🔩 NPT / BSPT threaded connections simplify installation on compatible piping.
- 🔥 Suitable for demanding steam and industrial process applications when correctly specified.
- 🛠️ Compact compared with many equivalent flanged valves.
- 🛡️ Strong resistance to mechanical stress and pressure cycling.
- ⚙️ Reliable shut-off for industrial isolation duties.
- 🔧 Available with different trim and packing combinations for specific applications.
⚠️ Disadvantages / Considerations
- 🚫 Not recommended for throttling or continuous flow regulation; gate valves are primarily isolation valves.
- 🕐 Multi-turn handwheel operation is slower than quarter-turn ball valves.
- 🔧 Thread sealant and correct installation torque are important for NPT/BSPT connections.
- 🌧️ Carbon steel requires appropriate protection in highly corrosive environments.
- 📐 NPT and BSPT are different thread standards and should not be treated as interchangeable without verifying compatibility.
🚀 Common Applications
✔️ Oil & Gas Installations
✔️ Refineries & Petrochemical Plants
✔️ Steam Lines
✔️ Power Generation Facilities
✔️ High-Pressure Process Piping
✔️ Chemical Plants
✔️ Industrial Utility Lines
✔️ Boiler & Auxiliary Systems
✔️ Compressed Air Systems
✔️ General Process Isolation
