FORGED CARBON STEEL 2 PIECE BALL VALVE FLANGE TYPE 300LB
🔩 Forged Carbon Steel 2-Piece Ball Valve – Flanged Type Class 300

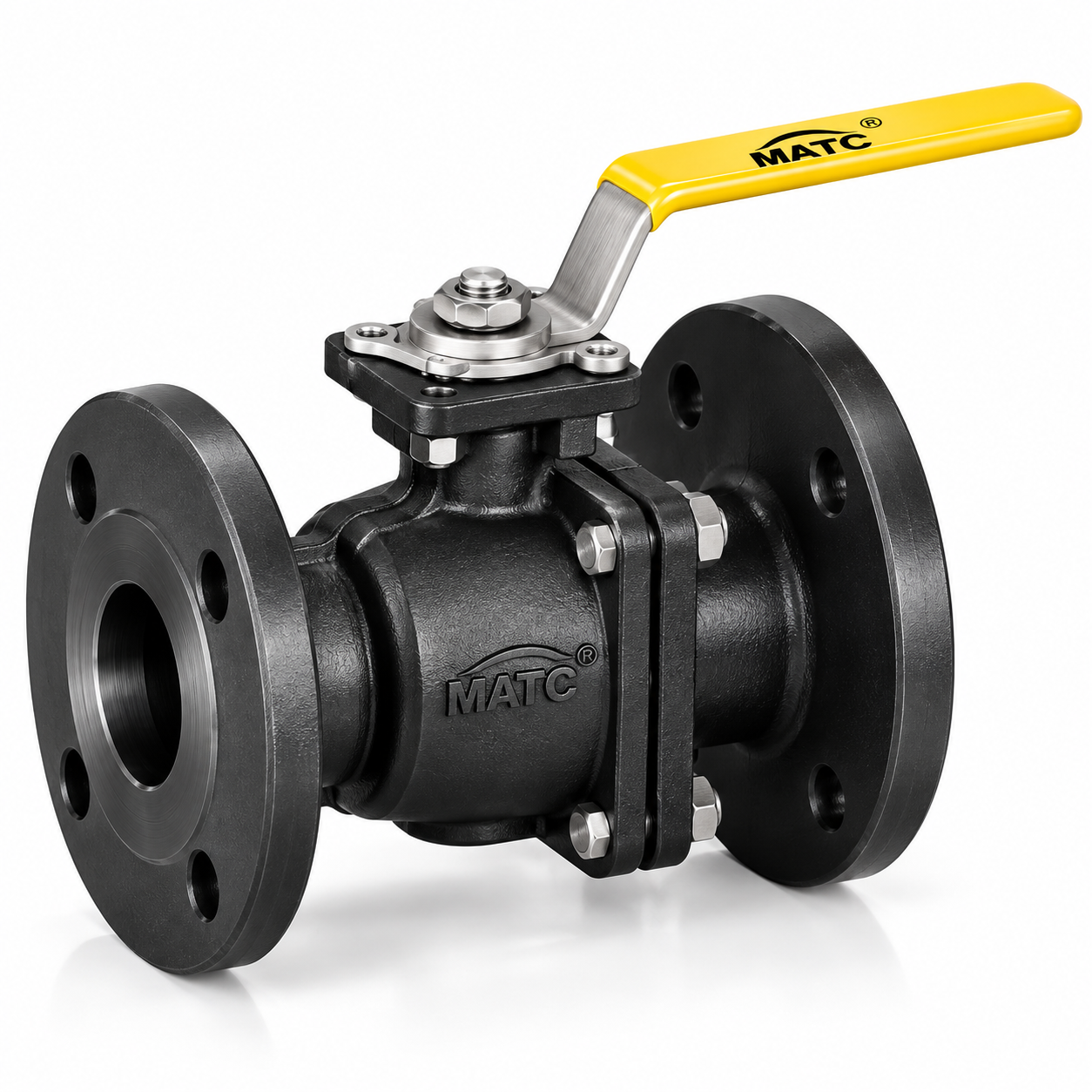

MATC Forged Carbon Steel 2-Piece Ball Valve – Flanged Class 300 is a heavy-duty industrial isolation valve designed for demanding oil & gas, petrochemical, refinery, power generation and process-piping applications. Manufactured from forged carbon steel—commonly ASTM A105—the two-piece split-body construction combines high mechanical integrity with convenient maintenance and dependable shut-off performance. ⚙️🏭 BSO Ballseal
Supplied by MATC – Mustafa Ashqar Trading L.L.C., Dubai, U.A.E. 🇦🇪
📏 Available Sizes
Typical sizes include ½” (DN15), ¾” (DN20), 1″ (DN25), 1¼” (DN32), 1½” (DN40), 2″ (DN50), 2½” (DN65), 3″ (DN80), 4″ (DN100), 6″ (DN150), 8″ (DN200), 10″ (DN250) and 12″ (DN300).
Larger sizes and trunnion-mounted configurations can be supplied depending on project specifications. Forged Class 300 ball valves are available across both compact floating-ball and larger trunnion designs. BSO Ballseal
⚙️ Key Characteristics
- 🦾 Forged carbon steel body provides excellent strength, toughness and pressure integrity.
- 🔩 2-piece split-body construction facilitates assembly and maintenance.
- 💥 ASME Class 300 pressure rating for demanding industrial piping.
- 🔵 Precision-machined ball provides smooth 90° quarter-turn operation.
- 💧 Soft-seat configurations using PTFE / RPTFE / PEEK can provide dependable tight shut-off depending on service requirements. BSO Ballseal
- 📉 Full-bore options provide high flow capacity with minimal restriction.
- 🔩 Raised Face (RF) or RTJ flanged ends can be supplied depending on size and specification. BSO Ballseal
- 🛡️ Anti-blowout stem, anti-static and fire-safe features are available on appropriate designs. CNMFRS
- 🔄 Available with lever, worm gearbox, pneumatic or electric actuator, depending on valve size and operating requirements. Kosen
- 🏭 Suitable for severe industrial and hydrocarbon services when materials and seats are correctly specified.
📋 Typical Technical Specifications
| Parameter | Specification |
|---|---|
| Product | 2-Piece Forged Carbon Steel Ball Valve |
| Supplier | MATC – Dubai, U.A.E. |
| Body Design | 2-Piece / Split Body |
| Body Material | Forged Carbon Steel |
| Typical Body Grade | ASTM A105 |
| Pressure Rating | ASME Class 300 |
| End Connection | Flanged |
| Facing | RF / RTJ options |
| Flange Standard | ASME B16.5 / applicable standard |
| Ball | SS304 / SS316 / A105 + suitable coating, depending on design |
| Stem | Stainless Steel / specified trim |
| Seat | PTFE / RPTFE / PEEK options |
| Port | Full Bore / Reduced Bore |
| Operation | Lever / Gear / Electric / Pneumatic |
| Function | ON/OFF Isolation |
| Typical Media | Oil, Gas, Water & compatible process fluids |
ASME B16.34 is commonly applied to the valve design, with ASME B16.5 used for applicable flanged connections and ASME B16.10 commonly referenced for face-to-face dimensions. BSO Ballseal
📌 Important: Class 300 does not mean 300 PSI. The allowable working pressure depends on material and operating temperature. For example, ASME material group 1.1 carbon steel data lists Class 300 at about 51.7 bar at 38°C, with allowable pressure decreasing as temperature rises. Always verify the final pressure-temperature rating against the valve manufacturer’s certified datasheet. Flowsynergy Solutions Limited
💪 Advantages
- 💥 Excellent pressure-handling capability
- 🦾 High-strength forged construction
- 💧 Reliable tight shut-off
- ⚡ Fast quarter-turn operation
- 📉 Low pressure loss with full-bore configuration
- 🔩 Strong Class 300 flanged pipeline connection
- 🔧 2-piece construction facilitates servicing
- 🔥 Fire-safe configurations available
- 🛡️ Anti-static and anti-blowout stem options
- 🤖 Suitable for manual or automated operation
- 🏭 Excellent choice for demanding oil & gas applications
⚠️ Disadvantages / Considerations
- 💰 Forged construction generally costs more than standard cast-body alternatives.
- ⚖️ Class 300 flanged valves can be relatively heavy, especially at larger diameters.
- 🎛️ Standard ball valves are primarily intended for isolation rather than prolonged throttling unless specifically designed for control duty.
- 🌡️ Maximum temperature depends strongly on seat and seal material.
- 🌧️ Carbon steel requires suitable corrosion protection for aggressive external environments.
- 🔧 Correct flange alignment, gasket selection and bolting procedures are essential.
🚀 Common Applications
✔️ Oil & Gas Pipelines
✔️ Refineries
✔️ Petrochemical Plants
✔️ Hydrocarbon Processing
✔️ Power Generation
✔️ Industrial Process Piping
✔️ Fuel & Oil Systems
✔️ Natural Gas Lines
✔️ Chemical Plants
✔️ Pump & Compressor Stations
✔️ High-Pressure Utility Systems
✔️ General Industrial Isolation
🇦🇪 Why Choose MATC Dubai?
MATC – Mustafa Ashqar Trading L.L.C., Dubai, U.A.E. supplies industrial valves, pipes, fittings, flanges and pipeline components for oil & gas, marine, petrochemical and general industrial applications.
Our Forged Carbon Steel 2-Piece Ball Valve – Flanged Class 300 is an excellent choice where strength, pressure integrity, rapid operation and dependable isolation are essential. 🔩🔥
MATC – ENERGY | POWER | PROGRESS
📲 For Class 300 ball valves, sizes, RF/RTJ options, technical specifications, stock availability and quotations, follow MATC on Instagram: @mustafa_ashkar_trd
