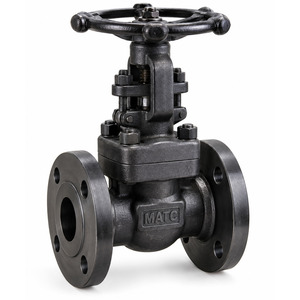

⚙️ Key Characteristics

• 🦾 Forged carbon steel body provides high mechanical strength and pressure integrity.
• 🔩 Flanged end connections provide strong and dependable installation into industrial piping systems.
• 🚪 Gate-type design is primarily intended for full-open or full-closed isolation service.
• 📉 Provides a relatively low pressure drop when fully open.
• 🔄 Manual multi-turn handwheel operation provides controlled opening and closing.
• 🔥 Suitable for elevated-temperature and pressure applications when appropriate trim, packing and gasket materials are selected.
• 🛡️ Stainless steel or alloy trim options can provide enhanced wear and corrosion resistance.
• 🔧 Bolted or welded bonnet configurations may be available depending on design.
• ⚙️ Rising-stem / OS&Y configurations allow convenient visual indication of valve position.
• 🏭 Engineered for demanding industrial and process applications.

📋 Typical Technical Specifications

📌 Important: Class 150 and Class 300 are ASME pressure classes, not fixed 150 PSI or 300 PSI working-pressure ratings. Actual pressure-temperature limits must be determined from the valve material, design standard and operating temperature.

💪 Advantages

• 💥 Available in both Class 150 and Class 300 for different piping requirements.
• 🦾 Forged construction provides excellent strength and structural integrity.
• 💧 Reliable shut-off for industrial isolation service.
• 📉 Low flow resistance when the gate is fully open.
• 🔩 Flanged connections facilitate secure pipeline installation.
• 🔧 Easier removal for maintenance than permanently welded valves.
• 🔥 Suitable for demanding steam, oil and gas services when properly specified.
• 🛡️ Different trim materials can be selected for specific media.
• 👁️ OS&Y designs provide visible stem-position indication.
• 🏭 Suitable for continuous industrial service.

⚠️ Disadvantages / Considerations

• 🚫 Gate valves are generally not recommended for throttling; prolonged partially-open operation can damage the gate and seating surfaces.
• 🕐 Multi-turn operation is slower than quarter-turn ball or butterfly valves.
• 📐 Proper flange alignment is necessary to avoid piping stress and leakage.
• ⚖️ Flanged valves are heavier and require more installation space than screwed valves.
• 🌧️ Carbon steel may require external coating or protection in corrosive environments.
• 🔧 Correct gasket selection, bolting and tightening procedures are essential.

🚀 Common Applications

✔️ Oil & Gas Pipelines
✔️ Refineries
✔️ Petrochemical Plants
✔️ Power Generation Facilities
✔️ Steam & Condensate Systems
✔️ Industrial Process Piping
✔️ Chemical Plants
✔️ Boiler & Utility Systems
✔️ Water & Cooling Systems
✔️ Pumping Stations
✔️ General Industrial Isolation
