H-BEAM IN DUBAI U.A.E

H-BEAM

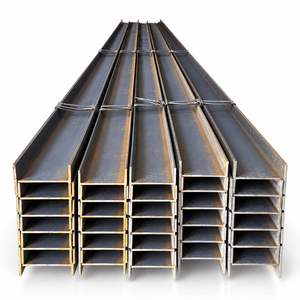

🏗️ Structural Steel H-Beam – Hot-Rolled Carbon Steel H Sections

MATC Structural Steel H-Beams, supplied by Mustafa Ashqar Trading L.L.C., Dubai, U.A.E. 🇦🇪, are heavy-duty structural steel sections engineered to provide excellent load-bearing capacity, bending resistance and structural stability for construction and industrial engineering applications.

Featuring a distinctive H-shaped cross-section with wide flanges and a central web, these beams are widely used in steel buildings, warehouses, bridges, factories, industrial platforms, columns and infrastructure projects.

China H SECTION Suppliers, Manufacturers, Factory - Good Price - Tianjin Lefin

European Flange Beam, HE-Section, Carbon Steel

Wide Flange H-Beams (HEA) | S275JR & S355JR Steel Beams

8

📏 Available Sizes

H-Beams are available in a broad range of nominal section dimensions, depending on the applicable standard and manufacturer.

Common H-Beam Sizes (mm):

Nominal Size (H × B) Typical Application
100 × 100 Light structural frameworks
125 × 125 Small support structures
150 × 150 Building frames and supports
175 × 175 Structural steel fabrication
200 × 200 Columns and medium-duty frames
250 × 250 Industrial buildings
300 × 300 Heavy structural columns
350 × 350 Large steel structures
400 × 400 Industrial and infrastructure projects
450 × 450 Heavy-duty structural applications
500 × 500 Major load-bearing structures
600 × 300 Large-span beams and industrial frameworks

Typical Lengths: 6 metres and 12 metres, with other lengths depending on rolling and cutting requirements.

Important: These are nominal size examples, not a single universal dimensional series. Exact flange widths, web thicknesses, section weights and availability must be confirmed against the relevant standard.

Get a Quote

⚙️ Key Characteristics

  • 🦾 High load-bearing capacity for structural steel construction.

  • 🏗️ Wide-flange H-shaped profile provides efficient resistance to bending.

  • 📐 Uniform cross-sectional geometry supports accurate structural fabrication.

  • 🔩 Suitable for steel columns, beams, frames and industrial support systems.

  • ⚖️ Efficient strength-to-weight performance when correctly designed.

  • 🔧 Can be cut, drilled, welded and bolted using approved fabrication methods.

  • 🏭 Available in various steel grades and dimensional standards.

  • 🛡️ Can be painted, galvanized or fire-protected according to project requirements.

  • ♻️ Recyclable structural steel material.

📋 Typical Technical Specifications

Parameter Specification
Product Structural Steel H-Beam
Supplier MATC – Dubai, U.A.E.
Material Carbon Structural Steel
Profile H-Shaped / Wide-Flange
Manufacturing Hot-Rolled / Fabricated Options
Common Grades ASTM A36 / ASTM A992 / S275 / S355 options
Dimensional Standards ASTM A6 / EN 10365 / JIS G 3192, as applicable
Typical Lengths 6 m / 12 m
Surface Finish Mill Finish / Painted / Galvanized Options
Connection Methods Welding / Bolting
Primary Function Structural Load Support
Applications Buildings, Bridges, Warehouses & Industrial Structures

📌 Steel grades and dimensional standards are not automatically interchangeable. H-Beam dimensions, mechanical properties and certification should be selected according to the approved structural design and project requirements.

📊 H-Beam Dimensions & Theoretical Weight Chart

Below are representative European HEB wide-flange section dimensions for technical reference. HEB is one particular standardized family of H-sections, not a universal H-Beam size designation.

Section Height (mm) Width (mm) Weight (kg/m)
HEB 100 100 100 20.4
HEB 120 120 120 26.7
HEB 140 140 140 33.7
HEB 160 160 160 42.6
HEB 180 180 180 51.2
HEB 200 200 200 61.3
HEB 220 220 220 71.5
HEB 240 240 240 83.2
HEB 260 260 260 93.0
HEB 280 280 280 103.0
HEB 300 300 300 117.0
HEB 320 320 300 127.0
HEB 340 340 300 134.0
HEB 360 360 300 142.0
HEB 400 400 300 155.0

Indicative theoretical masses, rounded from commonly published section tables. Confirm exact dimensions and weights against the specified rolling standard and mill certificate.



💪 Advantages

  • 🦾 Excellent structural strength and load-bearing performance.

  • 🏗️ Suitable for columns, beams and major steel frameworks.

  • 📐 Wide flanges offer efficient bending resistance about the strong axis.

  • 🔩 Convenient welded and bolted structural connections.

  • ⚖️ Efficient material usage in properly engineered structures.

  • 🔧 Suitable for prefabrication and modular construction.

  • 🏭 Wide range of structural grades and section families.

  • ♻️ Recyclable and reusable steel material.

⚠️ Disadvantages / Considerations

  • 🌧️ Carbon steel requires suitable corrosion protection in exposed environments.

  • 🔥 Fire protection may be required to maintain structural performance during a fire.

  • ⚖️ Large sections require appropriate lifting, transportation and installation equipment.

  • 📐 H-Beams must be checked for bending, shear, buckling and lateral stability.

  • 🔧 Welding and bolting require approved connection designs and installation procedures.

  • 🧪 Certified material grades and dimensional compliance are essential for structural applications.

🚀 Common Applications

✔️ 🏢 Commercial & Residential Buildings ✔️ 🏭 Industrial Warehouses & Factories ✔️ 🌉 Bridges & Flyovers ✔️ 🏗️ Structural Columns & Beams ✔️ 🛢️ Oil & Gas Industrial Structures ✔️ ⚙️ Equipment Support Frames ✔️ 🚢 Marine & Port Infrastructure ✔️ 🏢 Multi-Storey Steel Buildings ✔️ 🏗️ Heavy Structural Fabrication ✔️ 🏭 Industrial Platforms & Gantries

🇦🇪 Why Choose MATC H-Beams in Dubai?

MATC – Mustafa Ashqar Trading L.L.C., Dubai, U.A.E. supplies industrial steel products and structural materials for construction companies, steel fabricators, industrial contractors and infrastructure projects.
