CHICAGO COUPLING HOSE SHANK X FEMALE THREAD
Available Sizes
Common sizes include:
| Hose Shank | Female Thread |
|---|---|
| 3/8″ | 3/8″ NPT |
| 1/2″ | 1/2″ NPT |
| 3/4″ | 3/4″ NPT |
| 1″ | 1″ NPT |
| 1-1/4″ | 1-1/4″ NPT |
| 1-1/2″ | 1-1/2″ NPT |
| 2″ | 2″ NPT |
Reducing combinations such as 1″ hose × 3/4″ female thread may also be available depending on the manufacturer.
American Standard / NPT Connection
For the American-standard version, specify NPT female threads.
Applicable thread standard:
- ASME B1.20.1 – NPT General Purpose Pipe Threads
For purchasing or website specifications, it is better to state “Female NPT” explicitly rather than only “American Standard.”
Key Features
- Hose shank × female threaded configuration
- Serrated tail provides secure hose retention
- Female NPT connection for American-standard piping
- Heavy-duty metal construction
- Zinc-plated or galvanized finish
- Compact industrial design
- Easy installation and replacement
- Suitable for portable and fixed air-line systems
- Wide range of hose and thread sizes
- Suitable for use with heavy-duty hose clamps
Typical Applications
- Air Compressor Connections
- Compressed Air Hoses
- Pneumatic Equipment
- Air Manifolds
- Jackhammer Air Lines
- Sandblasting Equipment
- Construction Equipment
- Workshop Air Systems
- Industrial Utility Lines
- Mining & Quarry Equipment
Industries Served
- Construction
- Oil & Gas
- Mining & Quarrying
- Marine & Shipbuilding
- Industrial Manufacturing
- Equipment Rental
- Sandblasting
- Road Construction
- Cement Plants
- Steel Plants
- Workshops
- Infrastructure Projects

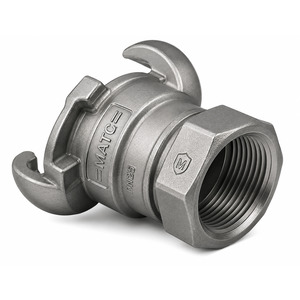

Chicago Coupling – Hose Shank × Female Thread
Product Description
Chicago Coupling – Hose Shank × Female Thread is a heavy-duty air-line connection fitting used to connect a flexible industrial hose to a male-threaded pipe, valve, manifold, compressor, or pneumatic equipment connection.
The fitting incorporates a serrated hose shank / hose tail on one end and a female threaded connection on the other. The hose shank provides mechanical grip inside the hose and is secured using an appropriate hose clamp, while the female thread provides a secure connection to male-threaded equipment.
Important: This configuration is generally an adaptor/fitting rather than the standard two-lug Chicago mating coupling. If your actual product has a claw connection as well, its configuration should be specified separately.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Hose Shank × Female Thread Adaptor |
| Product Family | Chicago / Industrial Air Hose Fittings |
| Body Material | Malleable Iron / Ductile Iron / Carbon Steel |
| Optional Material | Brass / Stainless Steel |
| Surface Finish | Zinc Plated / Galvanized |
| Hose End | Serrated Hose Shank / Hose Tail |
| Thread End | Female Thread |
| American Thread | NPT Female |
| Optional Thread | BSP / BSPT Female |
| Working Pressure | Depending on size, material and manufacturer |
| Service | Compressed Air / Water / Compatible Industrial Fluids |
| Installation | Hose Clamp × Female Threaded Connection |
