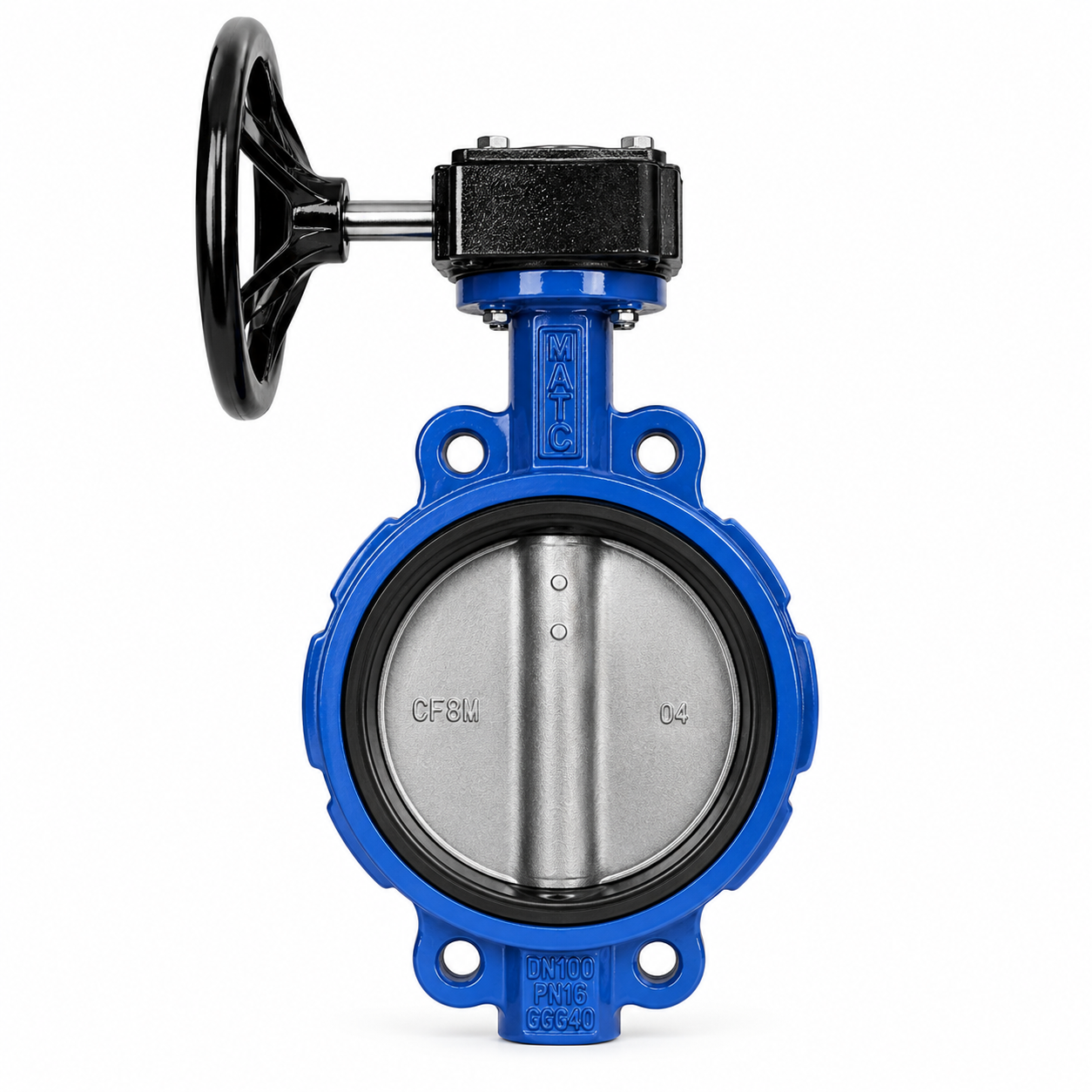

CAST IRON BUTTERFLY VALVE WAFER TYPE GEAR OPERATED
Product Name: Wafer Type Butterfly Valve with Gear Operator
Valve Type: Butterfly Valve
Design: Wafer Type
Material:
Body: Ductile Iron (other materials such as cast iron, stainless steel, or carbon steel may also be available)
Disc: Stainless Steel (other materials such as ductile iron or aluminum bronze may also be available)
Seat: EPDM/NBR/Viton (depending on application requirements)
Pressure Rating: ANSI Class 150/ PN16 (may vary depending on specific model and manufacturer)
Temperature Rating: Up to 250°F (may vary depending on specific model and material)
Connection Type: Wafer
Operation: Gear Operator
Sizes Available:
2 inches
3 inches
4 inches
6 inches
8 inches
10 inches
12 inches
Custom sizes available upon request
Features:
Design: The wafer type butterfly valve is designed to fit between two flanges without the need for additional flange gaskets, making it compact and lightweight.
Construction: The valve body is made of ductile iron for strength and durability. The disc is typically made of stainless steel for corrosion resistance and longevity.
Seat: The valve is equipped with a resilient seat made of EPDM, NBR, or Viton, providing a tight seal against leakage.
Gear Operator: The valve is operated by a gear operator, providing manual control over the opening and closing of the valve. The gear operator offers precise positioning and torque transmission for ease of operation.
Pressure Rating: Suitable for applications with pressures up to ANSI Class 150/ PN16, providing reliable performance under various operating conditions.
Application: Ideal for use in HVAC systems, water treatment plants, chemical processing, and other industrial applications where reliable flow control is essential.
